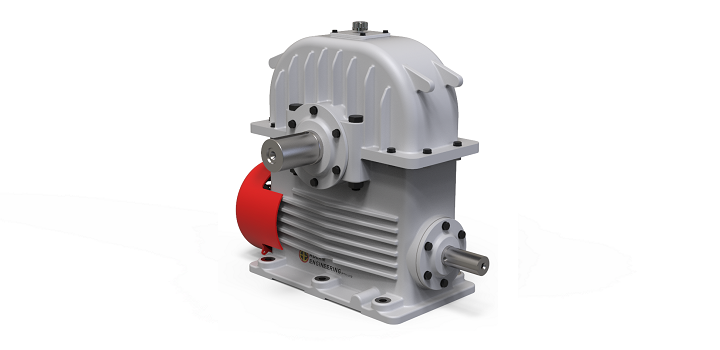

- Worm Drives are generally built from case hardened steel worms working on a bronze type wheels. The Input Shaft and Output Shaft are perpendicular. Worm gear drives operate silently and smoothly They are self-locking They occupy less space They have good meshing effectiveness Can be used for reducing speed and increase torque Manufacturing documentation and records

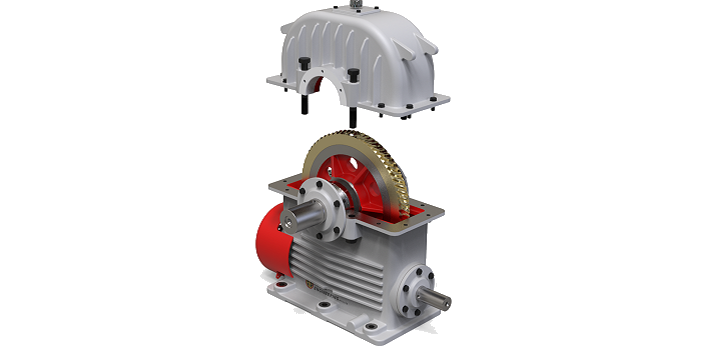

- Reduction Stages: Single or Double Ratio up to 100 Gear Combinations: Worm Gear and Worm Pinion Shaft Centre distances up to 28" Teeth Pitch up to 1DP Input: Solid Shaft, Motor Adaptor Output: Solid Mounting: Foot-mounted

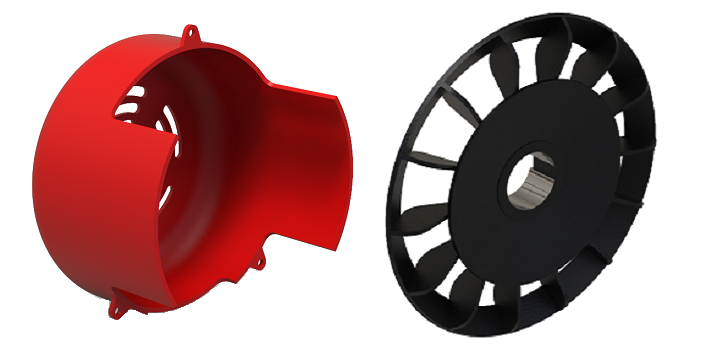

- An additional Reduction can be added to ramp up the overall Reduction Ratio Fan for Air Cooling Input and Output Coupling configuration as required by the Customer Special Painting Requirements: Marine or Customer Specification

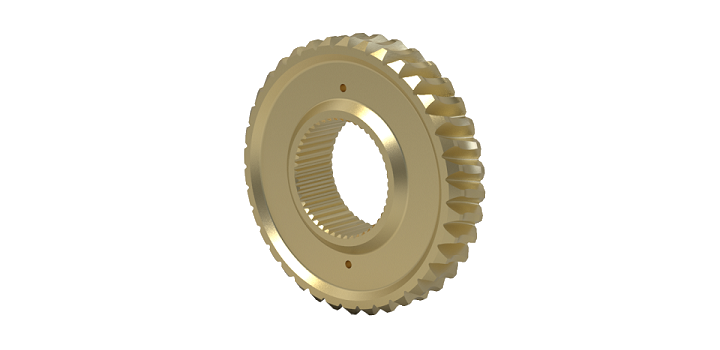

- Designed in accordance with AGMA and ISO Standard requirements Recommended Tooth Modules for the application Correct Gear Pressure angle Worm shaft twist direction

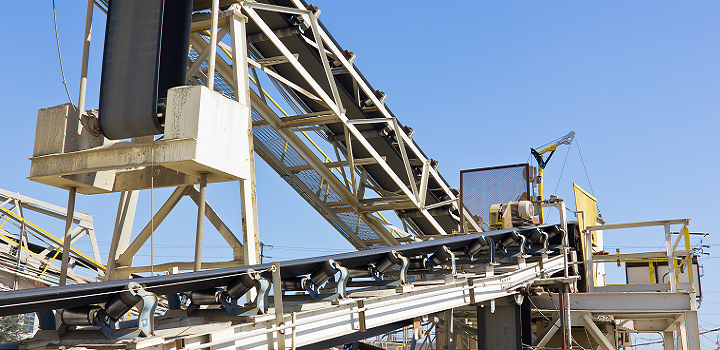

- Conveyor Head Pulleys Speed reducers Elevators Lifts
