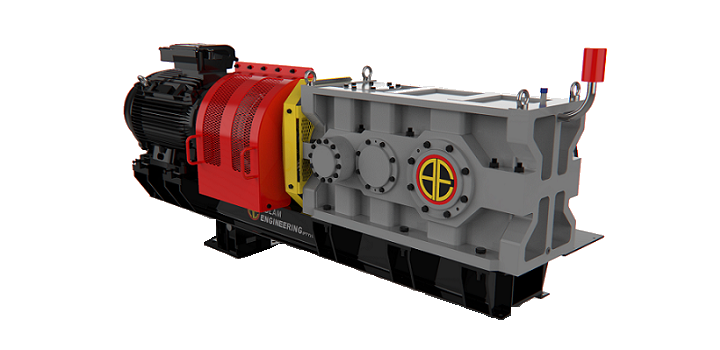

- High level of precision Gear Grinding ensures high efficiency gearing, low noise and more load carrying capacity Power Upgrades, Ratio Changes and Replacement Parts available Dual seal design: ensuring oil stays in and dirt out Horizontal Split Housing for easy maintenance Drop-in Replacements Service and Exchange units available Various Paint Specifications and Options available for Surface, Underground or Marine applications Manufacturing documentation and records

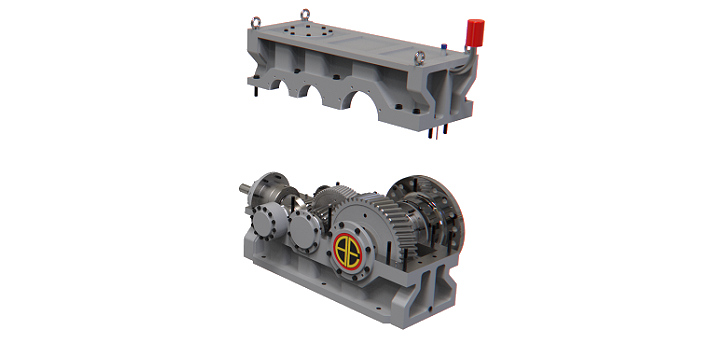

- Mounting: Foot-mounted / Fabricated Base Plate / Shaft Mounted - Torque arm configuration or Flange mounted Reduction stages: 2 to 4 stages Ratio: 10 to 400 Power Range: 55kW to 4000kW Gear Combinations: Helical Gears and Spiral Bevels Input: Solid Shaft, Motor Adaptor Output: Solid (Single or Double Extended) Hollow Shaft with Shrink Disc

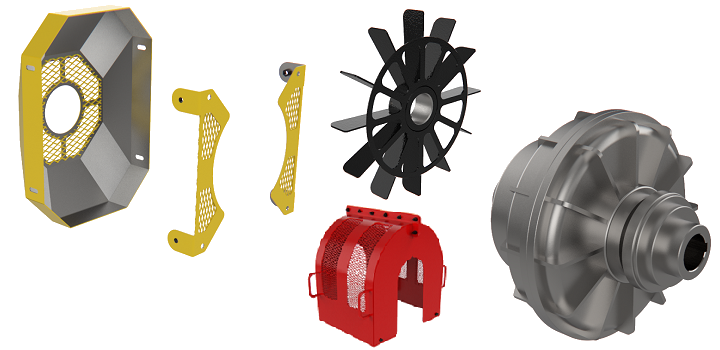

- Complete Power Pack - includes base frame, motor, couplings, etc. Bell housing for flange mounted motors Hollow shaft, Solid Shaft or Double Extended Shaft Holdback / Backstop Disc or Drum Brakes Forces cooling with fan Oil dipstick and Oil level sight glass Temperature Sensor: Bearings and Oil Monitoring Breather types suitable for Environment and Application Special Painting Requirements: Marine or Customer Specification Fluid couplings or Coupling arrange required for the application (Customer Specification)

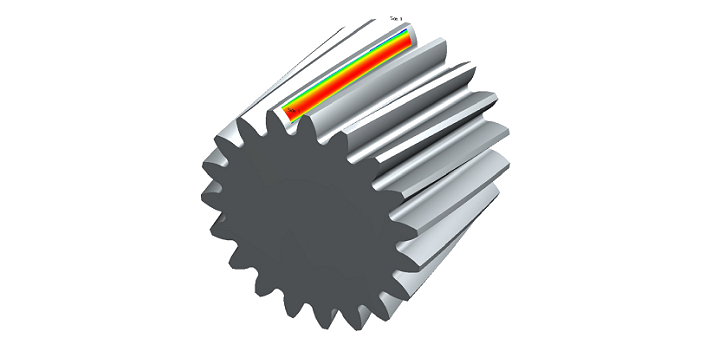

- Designed in accordance with AGMA and ISO Standard requirements Gear tooth models used to verify design calculations for the efficiency and performance of gear and pinion tooth profiles under load conditions.

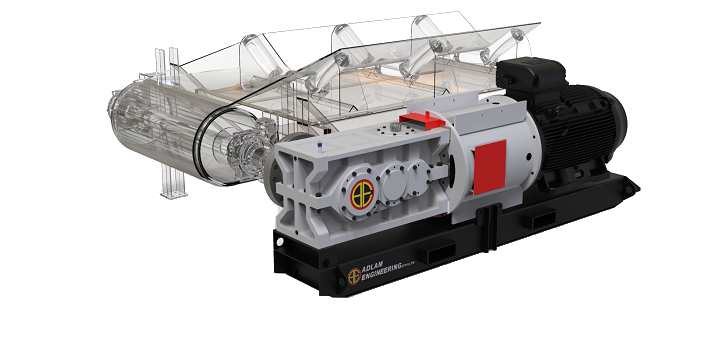

- Belt Conveyors Crushers Bucket elevator drives Cooling Towers and Water Turbines Single-screw Extruders Agitators and Aerators Hoists Paper machine drives
