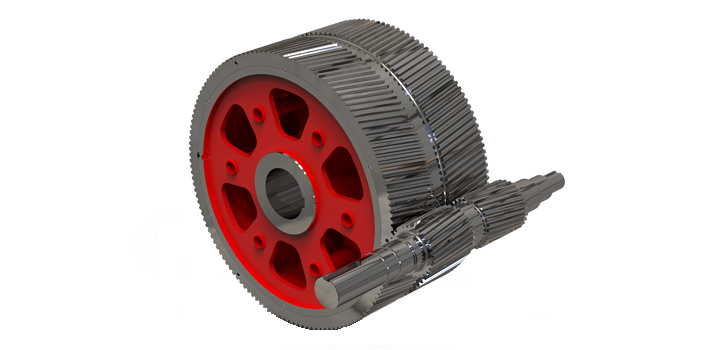

- The major advantage of Double Helical Gears is to balance the axial forces, resulting in zero axial forces on the bearings Due to the large face width and large helix angle, more torque can be transmitted in a single reduction Larger helix angle means larger torque transmitted Fabricated from structural steel and fitted with alloy steel for teeth

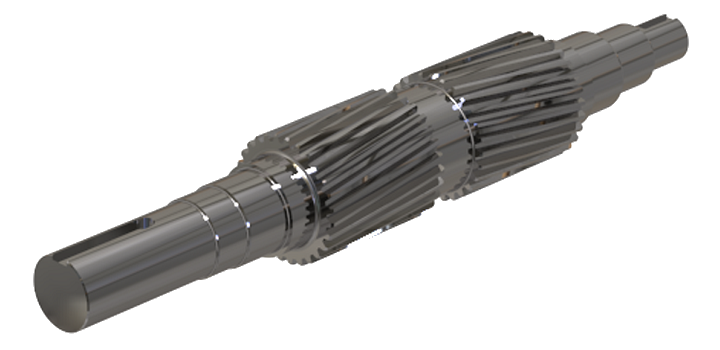

- A high reduction Ratio in single stage, typical 6:1 High helix angle: 25°C, 30°C and 35°C Pitch up to 16 Mod Face width up to 950mm

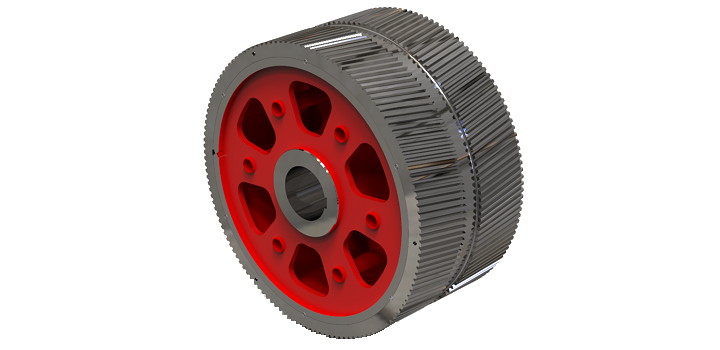

- Refurbishment of gear wheel rim Recut gear rim and supply oversize pinion shaft New Gear Sets for Drop-In Replacements Fabricated rim center with shrink fit rims Rim hardness's available to meet Customer Specification

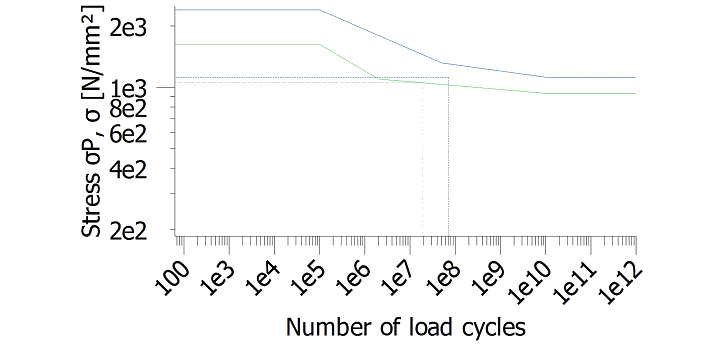

- Optimized Tooth Lifespan (Woehler Line / S-N Curves) Designed in accordance with AGMA and ISO standard requirements

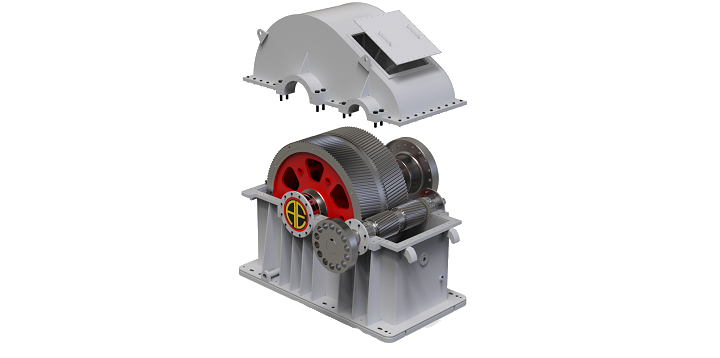

- MINING - Horizontal Ball and SAG Mills CEMENT - Kiln Drives and Ball mills Double Helical Gearbox
